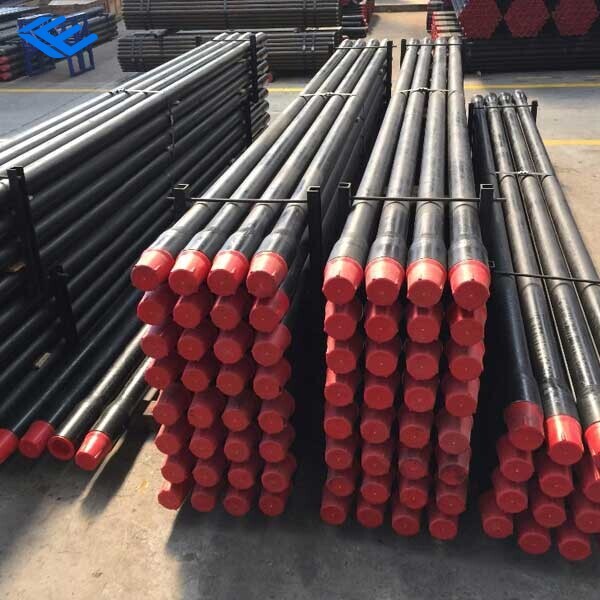

Drill Pipe

We strictly in accordance with the ISO 9001 quality management system for on-site management, has obtained ISO 9001, ISO 14001, ISO 45001, CE, AAA-level credit rating certification, etc. Our products have been inspected and approved by SGS, BV, MOODY, TUBOSCOPE and other international authoritative third-party organizations
1.Raw material inspection: dimension and tolerance check, appearance quality check, mechanical properties testing, weight check and raw materials quality assurance certificate check
2.Semi-finished goods inspection: physical and chemical inspection, leakage magnetism and ultrasonic inspection
3.Finished goods inspection: dimension and tolerance, appearance quality check and mechanical properties testing
4.Inspection before ex-factory: We arrange our QC staff to manufacture’s plant for final quality and packing inspection each time before we deliver goods to port for shipping, and the connected sales staff will be with QC staff to make sure we did everything fully and strictly meet our customers’ requirements.

WhatsApp：+86 15563540881

Email：bhkerry@cnbhgt.com

◉ Product Description

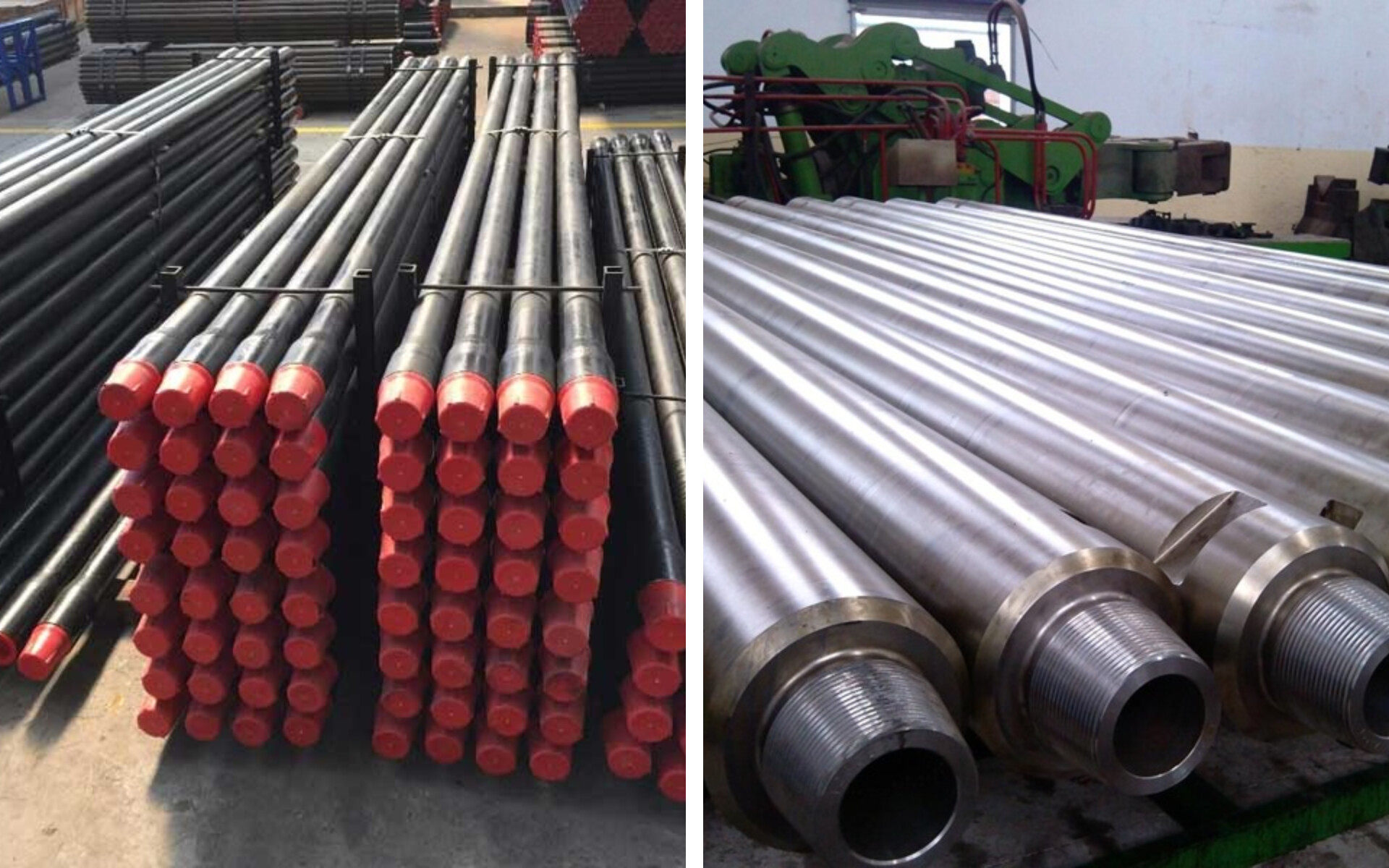

◉ Product Show

◉ Packaging And Shipping

◉ Application

◉ Product Description

introduction

Drill pipe is heavy, seamless pipe which provide rotation for circulating the drilling fluid.

The pipe helps the drilling fluid to be pumped back up the annulus.

The annulus of an oil well is the space between the casing and the piping or any immediate space between any casing and tubing surrounding it.

The Annulus helps in the easy circulation of the fluid in the well. The pipe is subject to axial tension as high torque is

required for rotating the down-hole assembly and drilling the fluid and circulating it.

All this creates a large amount of stress on the drill pipe; hence the OCTG pipe should be extremely strong.

Drill Pipe Size:

OD: 60.32mm-168.28mm

WT: 6.45-12.7mm

LENGTH: R1, R2, R3

Heavy Weigh

2-3/8" to 6-5/8" OD, Range 2 and 3

Grades: E75, X95, G105, S135

Connection threads:NC26, NC31, NC38, NC40, NC46, NC50, 5 1/2FH.6 5/8FH.

Pipe Standard:API 5DP E75, X95, G105, S135

Upset Style:IU, EU, IEU

The wear-resistant belt of tool joint:TK34,TC2000, Arnco 100XT, 200XT, 300XT400XT

Internal coating drill pipe:TK34,DPC,TC2000,TC3000

Connection:NC26, NC31, NC38, NC40, NC46, NC50, 5 1/2FH.6 5/8FH.

USAGE:Mine blasting,water well drilling,geothermal wells drilling,

fore poling,cooal and nonferrous metal mining projects etc;

Application: Drill pipe is for exploration and development of oil and gas wells.

More products can be produced, please contact us

High Strength Drill Pipe

Thick Wall Drill Pipe

Sour Service Drill Pipe

Horizontal Directional Drill Pipe

Heavy Weight Drill Pipe：

Standard HWDP

Tri-spiral HWDP

Spiral-Wate HWDP

High Strength Welded HWDP

Heavy Weight Drill Pipe

Drill Stem Accessories：

Drill Pipe Pup Joint

Sub

2 ½” – 6” Square kelly 3” – 6” Hexagonal kelly

Kelly( Square Kelly /Hexagonal Kelly)

outer diameter				wall thickness
in	mm	normal weight	steel grade	in	mm	upset ends	tool joint designation
2 3/8	60.32	6.65	E,X,G	0.28	7.11	EU	NC26
2 7/8	73.02	10.4	E,X,G,S	0.362	9.19	EU	NC31
3 1/2	88.9	9.5	E	0.254	6.45	EU	NC38
		13.3	E,X,G,S	0.368	9.35	EU	NC38
		13.5	E,X,G	0.449	11.4	EU	NC38
		13.5	S	0.449	11.4	EU	NC40
4	101.6	14	E,X,G,S	0.33	8.38	IU	NC40
4	101.6	14	E,X,G,S	0.33	8.38	EU	NC46
4 1/2	114.3	13.75	E	0.271	6.88	IU	NC46
		13.75	E	0.271	6.88	EU	NC46
		16.6	E,X,G,S	0.337	8..56	EU	NC50
		20	E,X,G,S	0.43	10.92	EU	NC50
		16.6	E,X,G,S	0.337	8.56	IEU	NC46
		20	E,X,G,S	0.43	10.92	IEU	NC46
5	127	19.5	E,X,G,S	0.362	9.19	IEU	NC50
		19.5	E,X,G,S	0.362	9.19	IEU	5 1/2 FH
		25.6	E,X,G	0.5	12.7	IEU	NC50
		25.6	E,X,G,S	0.5	12.7	IEU	5 1/2 FH
5 1/2	139.7	21.9	E,X,G,S	0.361	9.17	IEU	5 1/2 FH
5 1/2	139.7	24.7	E,X,G,S	0.415	10.54	IEU	5 1/2 FH
6 5/8	168.28	25.2	E,X,G,S	0.33	8.38	IEU	6 5/8 FH
6 5/8	168.28	27.7	E,X,G,S	0.362	9.19	IEU	6 5/8 FH

Note: EU— external upset; IU— internal upset; IEU—internal & external upset.

Dimension Tolerances

		Tolerance
	Pipe body	D≤101.60mm，±0.79mm
Drill-pipe-body Outside Diameter	Pipe body	D≥114.30mm，+1.0%, -0.5%D
		D≥60.32~≤88.90mm，+2.38%, -0.79%D
	Drill-pipe-body behind the Meu	D>88.90~≤127.00mm，+2.78mm, -0.75%D
		D>127.00~≤168.28mm，+3.18mm,-0.75%D
Wall Thickness		0, -12.5%t

Chemical Composition, Mass Fraction(%)
		P (%)	S (%)
	steel grade	≤	≤
	E	0.03	0.02
Pipe body	X, G, S	0.02	0.015
Tool Joint		0.02	0.015

Chemical Composition, Mass Fraction(%)
		P (%)	S (%)
	steel grade	≤	≤
	E	0.03	0.02
Pipe body	X, G, S	0.02	0.015
Tool Joint		0.02	0.015

◉ Product Show

◉ Packaging And Shipping

◉ Application

◉ FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of pipeline products located in Tianjin，China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.
Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
