Reducer

We strictly in accordance with the ISO 9001 quality management system for on-site management, has obtained ISO 9001, ISO 14001, ISO 45001, CE, AAA-level credit rating certification, etc. Our products have been inspected and approved by SGS, BV, MOODY, TUBOSCOPE and other international authoritative third-party organizations
1.Raw material inspection: dimension and tolerance check, appearance quality check, mechanical properties testing, weight check and raw materials quality assurance certificate check
2.Semi-finished goods inspection: physical and chemical inspection, leakage magnetism and ultrasonic inspection
3.Finished goods inspection: dimension and tolerance, appearance quality check and mechanical properties testing
4.Inspection before ex-factory: We arrange our QC staff to manufacture’s plant for final quality and packing inspection each time before we deliver goods to port for shipping, and the connected sales staff will be with QC staff to make sure we did everything fully and strictly meet our customers’ requirements.

Contact Us

◉ Product Description

SIZE:NPS1/2”-120”(DN15-3000)
WALL THICKNESS:SCH5S/10S, SCH20/40/80/160, STD/XS/XXS, SGP

3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80,

XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Reducer Type:Concentric Reducer, Eccentric
Reducer Material:

Carbon Steel --- ASTM A234 WPB/WPC, ASTM A105/A106/A53/A283-D,

 API 5l GR.B/A671-CC-70/A515-50/A135-A/A179-C

Stainless Steel --- ASTM 403 304/304L, 316/316L,316Ti,321,317L,310S Alloy Steel ---

ASTM 234 WP 1/5/9/11/12/22/91 Specification: NPS from 3/4'' to 48'', DN from 20 to 1200,

WT: 2-80mm, SCH 40/80/XXS Surface: Light Oiling, Black Painting
Reducer Type:Concentric Reducer,

Eccentric Reducer Material: Carbon Steel --- ASTM A234 WPB/WPC,

ASTM A105/A106/A53/A283-D, API 5l GR.B/A671-CC-70/A515-50/A135-A/A179-C

Stainless Steel --- ASTM 403 304/304L, 316/316L,316Ti,321,317L,310S Alloy Steel --- ASTM 234 WP 1/5/9/11/12/22/91
Specification: NPS from 3/4'' to 48'', DN from 20 to 1200, WT: 2-80mm, SCH 40/80/XXS Surface: Light Oiling, Black Painting

Size
Pipe Reducer, Reducer Fittings
Manufacturing Standards
ASME:ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN:DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN:EN10253-1, EN10253-2


ASTM A403 – ASME SA403Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9Factory-Made Wrought Fittings Buttwelding
ASME B16.25Buttwelding Ends
ASME B16.28Wrought Steel Short Radius Elbows and Buttwelding Returns
MSS SP-43Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications


Pipe Reducer Material Grades
Stainless Steel ReducerASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Reducer

ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46,

 WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel ReducerASTM A420 WPL3, A420 WPL6
Alloy Steel Reducer

ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9

, WP 11, WP 12, WP 22, WP 91

Duplex Reducer

ASTM A 815, ASME SA 815 UNS NO S31803,

 S32205. Werkstoff No. 1.4462

Nickel Alloy Reducer

ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 )

, UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3,

UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ),

UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625),

UNS 10276 ( HASTELLOY C 276 )

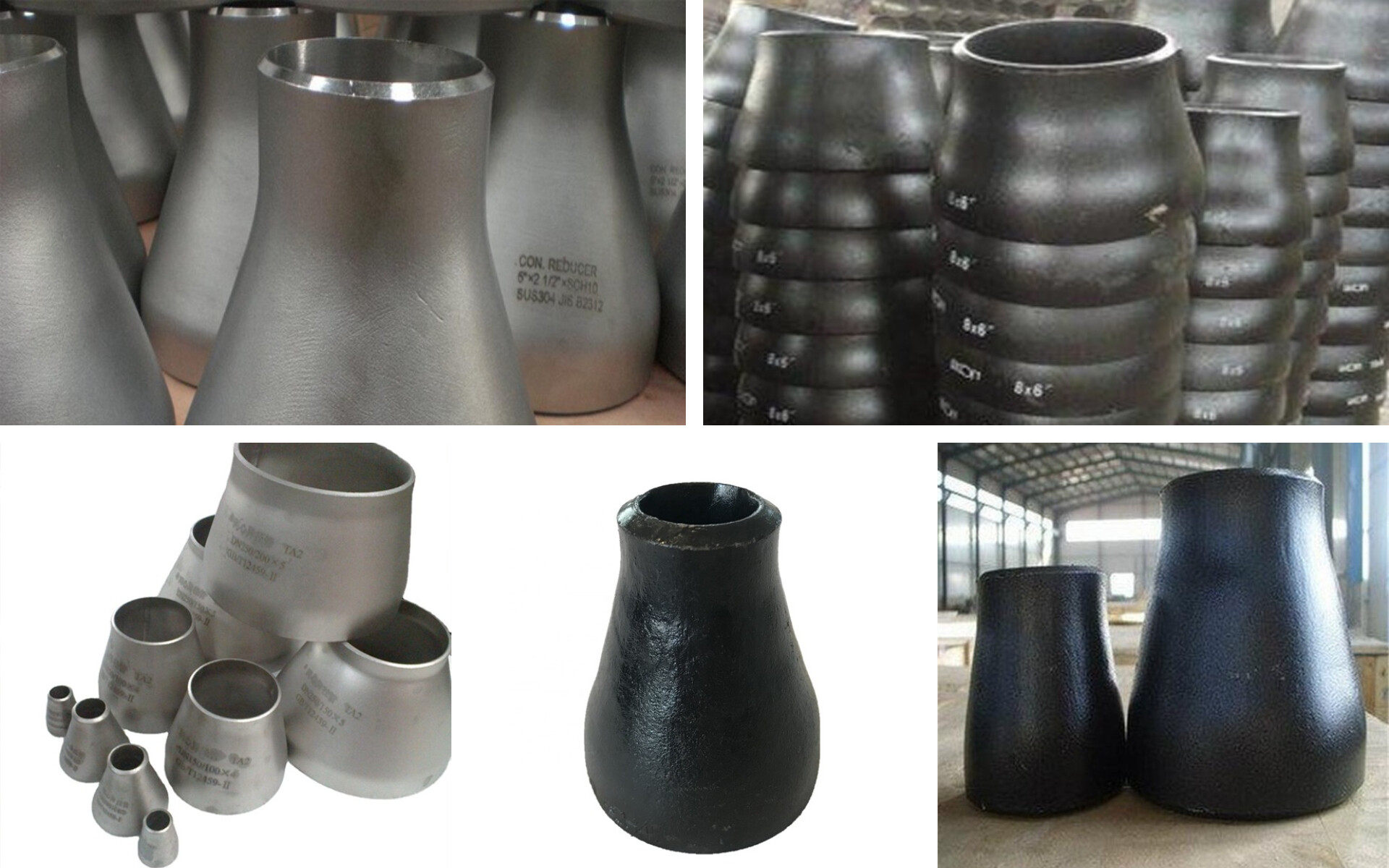

◉ Product Show

下载 - 2024-08-31T102842.980.jpg


◉ Packaging And Shipping

◉ Application

下载 - 2024-08-31T103806.847.jpg

◉ FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of pipeline products located in Tianjin,China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.
Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
