We strictly in accordance with the ISO 9001 quality management system for on-site management, has obtained ISO 9001, ISO 14001, ISO 45001, CE, AAA-level credit rating certification, etc. Our products have been inspected and approved by SGS, BV, MOODY, TUBOSCOPE and other international authoritative third-party organizations
1.Raw material inspection: dimension and tolerance check, appearance quality check, mechanical properties testing, weight check and raw materials quality assurance certificate check
2.Semi-finished goods inspection: physical and chemical inspection, leakage magnetism and ultrasonic inspection
3.Finished goods inspection: dimension and tolerance, appearance quality check and mechanical properties testing
4.Inspection before ex-factory: We arrange our QC staff to manufacture’s plant for final quality and packing inspection each time before we deliver goods to port for shipping, and the connected sales staff will be with QC staff to make sure we did everything fully and strictly meet our customers’ requirements.

Contact Us
WhatsApp：+86 15563540881
Email：bhkerry@cnbhgt.com
◉ Product Description
◉ Product Show
◉ Packaging And Shipping
◉ Application

◉ Product Description

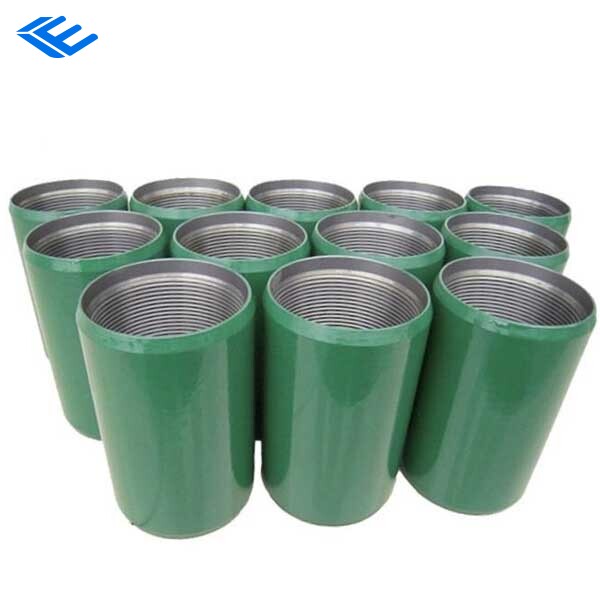

Couplings are short lengths of pipe used to connect 2 joints of tubing or casing.
They come with painted colour codes on their external surface to indicate their grades.
Couplings are manufactured according to API 5CT and 5B specifications.
API Tubing Coupling:
Specification
Size (Pipe OD) (in) :1.900, 2-3/8, 2-7/8, 3-1/2, 4, 4-1/2
Upset:Non Upset;External Upset
Grade:J-55, C-75, L-80, N-80, C-95, P-110
Option:Electro-zinc plated;Phosphorised
API Casing Coupling:
Specification
Size (Pipe OD) (in):4-1/2, 5, 5-1/2, 6-5/8, 7, 7-5/8, 8-5/8, 9-5/8, 10-3/4, 11-3/4, 13-3/8, 16, 18-5/8, 20
Threading:Short Round-Thread Casing (STC);Long Round-Thread Casing (LC);Buttress Thread Casing (BC)
Grade:H-40, J-55, K-55, C-75, L-80, N-80, C-95, AS-95, P-110, L80-13CR

API 5B, Specification for Threading, Gauging and Thread Inspection of Casing, Tubing,

and Line Pipe Threads.This Specification covers dimensions,

tolerances and marking requirements for API threads and the gauges that control the acceptance criteria for the threads.

Thread element gauges, instruments and requirements for the inspection of threads for line pipe,

 round thread casing, and buttress casing connections are included.

API Spec 5CT, Specification for Casing and Tubing, Eighth Edition,

Petroleum and natural gas industries-Steel pipes for use as casing or tubing for wells.

This Standard specifies the technical delivery conditions for steel pipes (casing, tubing and pup joints), coupling stock,

coupling material and accessory material and establishes requirements for three Product Specification Levels (PSL-1, PSL-2, PSL-3).

Application: casing coupling is a kind of drilling tool in oil field, which is mainly used for casing connection.

The casing coupling mainly solves the problem that the existing coupling is prone to fatigue fracture due to stress concentration.

Structure:The casing end is connected with the inner wall of the coupling by tapered thread,

and the end of the coupling body is connected with the oil pipe by the same thread and the same pitch flat thread.

The utility model has the characteristics of relieving the stress concentration at the root of the external thread of the single taper thread connecting sleeve,

not easy to produce fatigue fracture, and the connection effect is good.

The thread type of casing couplngs main include: Long Round-thread Casing Coupling(LC),

Short Round-thread Casing coupling(SC), Buttress Thread Casing Coupling(BC), and steel grade mainly include: J55, K55, N80, L80, P110 and so on.


Casing CouplingsCasing Size OD (inches)Coupling Size OD (inches)Length (inches)Weight per Coupling (lbs)Palletized Carton QuantityPalletized Carton Weight
Short Thread
2004/1/256.258.053432716
55.5636.510.182102168
2005/1/26.056.7511.442162501
2006/5/87.397.2519.971152322
77.6567.2518.341202231
2007/5/88.57.526.93802322
2008/5/89.6257.7535.58602132
2009/5/810.6257.7539.51502006
2010/3/411.75849.61452079
2011/3/412.75850.49351767
2013/3/814.375856.23251436
1617978.9820 -
2018/5/8209118.9410  -
2021998.2510  -







Casing Couplings Long Thread Specifications:
 Casing CouplingsCasing Size OD (inches)Coupling Size OD (inches)Length (inches)Weight per Coupling (lbs)Palletized Carton QuantityPalletized Carton Weight
Long Thread
2004/1/2579.072942697
55.5637.7512.562102573
2005/1/26.05814.031802555
2006/5/87.398.7524.821002315
77.656923.671002351
2007/5/88.59.2534.23802807
2008/5/89.6251047.48482337
2009/5/810.62510.555.77402302
2010/3/411.75* 10.500* 62.3845* 36
2011/3/412.75* 10.500* 67.5930* 24
2013/3/814.375* 10.500* 76.6325* 20
1617* 11.000* 96.5520* 16
2018/5/820--108
2021* 11.500* 126.74108
* NOT API SPECIFICATIONS.







Casing Coupling - Buttress Thread
Casing CouplingsCasing Size OD (inches)Coupling Size OD(inches)Length (inches)Weight per Coupling (lbs)Palletized Carton QuantityPalletized Carton Weight
Buttress Thread
2004/1/258.87510.111962007
55.5639.12512.991442840
2005/1/26.059.2514.141442061
2006/5/87.399.62524.46922295
77.6561023.22802068
2007/5/88.510.37564.84642221
2008/5/89.62510.62545.94482414
2009/5/810.62510.62550.99402256
2010/3/411.7510.62556.68362307
2011/3/412.7510.62561.74242179
2013/3/814.37510.62569.95201429
161710.62587.5616-
2018/5/82010.625138.038-
202110.625110.338-

Tubing Couplings - External Upset End (EUE):
 EUECasing Size OD (inches)Coupling Size OD (inches)Threads per inchLength (inches)Weight per Coupling (lbs)Palletized Carton QuantityPalletized Carton Weight
Tubing Couplings
1.92.510 Round-1.85--
2002/3/83.0638 Round4.8753.421,4443942
2002/7/83.6688 Round5.55.297924220
2003/1/24.58 Round5.759.024483860
458 Round-10.62392-
2004/1/25.5638 Round6.513.312523456








Tubing Couplings - Non Upset End (NUE)
 Non-UpsetCasing Size OD (inches)Coupling Size OD (inches)Threads per inchLength (inches)Weight per Coupling (lbs)Palletized Carton QuantityPalletized Carton Weight
Tubing Couplings
1.92.210 Round3.751.85--
2002/3/82.87510 Round4.52.821,5124264
2002/7/83.510 Round5.55.158004120
2003/1/24.2510 Round5.6258.175024101
44.758 Round5.759.57392-
2004/1/25.28 Round6.510.762522712








Coupling Pipe Grade Identification By Paint Color
GradeColour Coding (Painted Outside)
H-40Black
J-55 or K-55Green
N-80Red
M-65 or L-80Red with one Brown Band
L-80 Type 9CRRed with two Yellow Bands
L-80 Type 13CRRed with one Yellow Band
C-90 Type 1Purple
C-90 Type 2Purple with one Yellow Band
T-95 Type 1Silver
T-95 Type 2Silver with one Yellow Band
C-95Brown
P-110White
Q-125 Type 1Orange
Q-125 Type 2Orange with one Yellow Band
Q-125 Type 3Orange with one Green Band
Q-125 Type 4Orange with one Brown Band

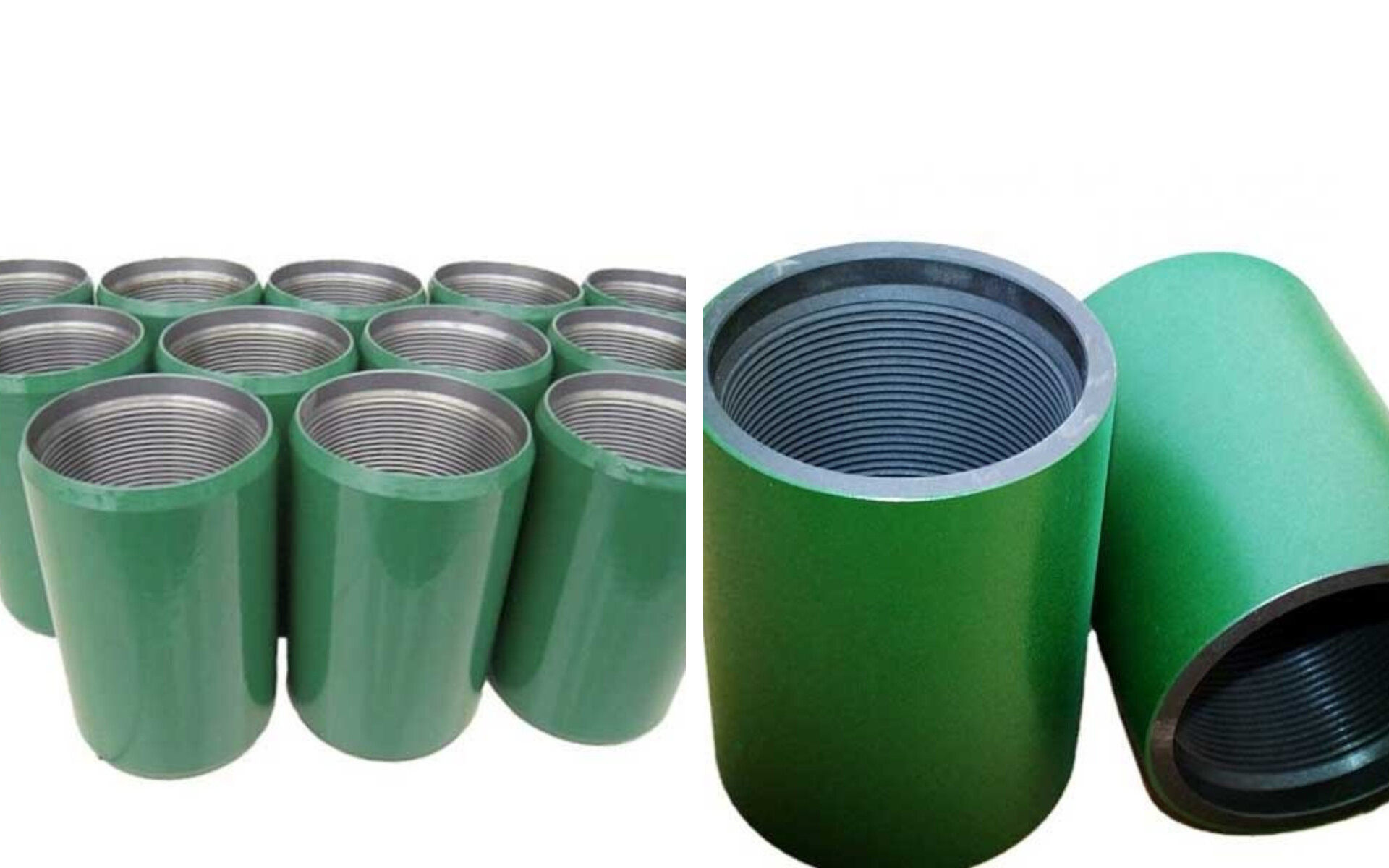

◉ Product Show

下载 - 2024-08-31T095338.642.jpg


◉ Packaging And Shipping

◉ Application

下载 - 2024-08-31T103806.847.jpg

◉ FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of pipeline products located in Tianjin，China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.
Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
